Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
|
 |

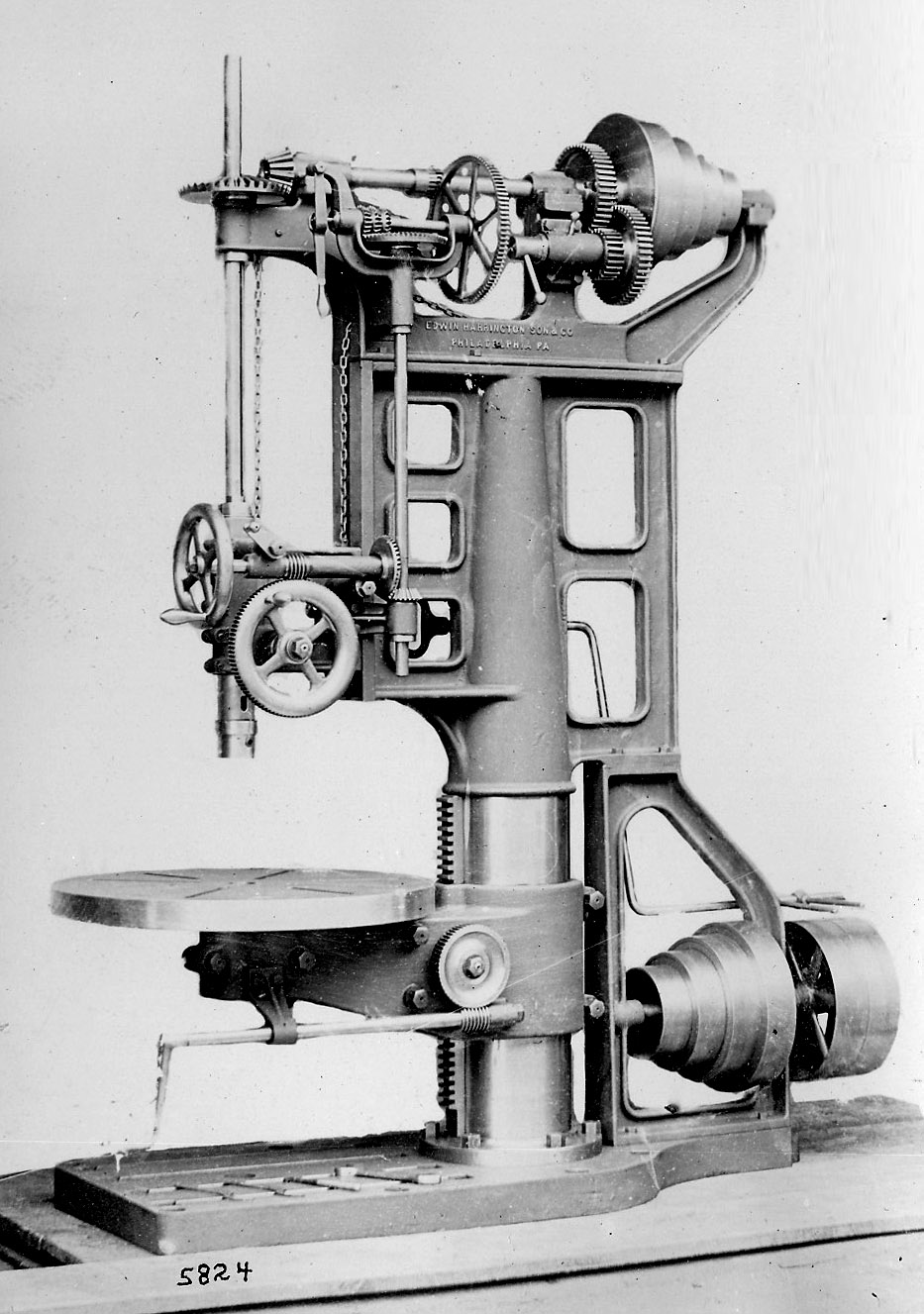

B--36-INCH DRILL PRESS.
Has straight column well braced, and adjustable sliding head; will
drill and bore up to 8 inches diameter; large base plate, 66½ x
24½ inches; adjustable table; automatic geared feed, 3 changes.
Steel spindle is counter-balanced and has quick return; may be operated
by either hand or power feed; bored to suit Morse Standard Twist Drill
Taper; has vertical traverse of 14 inches; greatest distance spindle to
base plate, 51½ inches; shortest distance spindle to base plate,
25 inches; longest distance spindle to table, 36 inches; shortest
distance spindle to table, 6½ inches; adjustment of sliding
head, 15 inches. Table, 30 inches diameter, is carefully fitted and
turns in bracket arm, which raises and lowers 16 inches by worm gear or
worm and swings on column. Sliding-head and spindle have each
independent balance weights; four section driving cone, back geared,
giving 8 changes of speed to spindle; counter-cone ; driving pullies,
14 x 3½, to run 200 turns per minute, on base of machine, giving
a long belt between cones.(B-28-Inch same style.) Shipping weight, lbs. $ Boxing for foreign shipment, $ 28-inch—Price, $425.00 |
