Edwin Harrington Chucking Gap Lathe pages 50-51

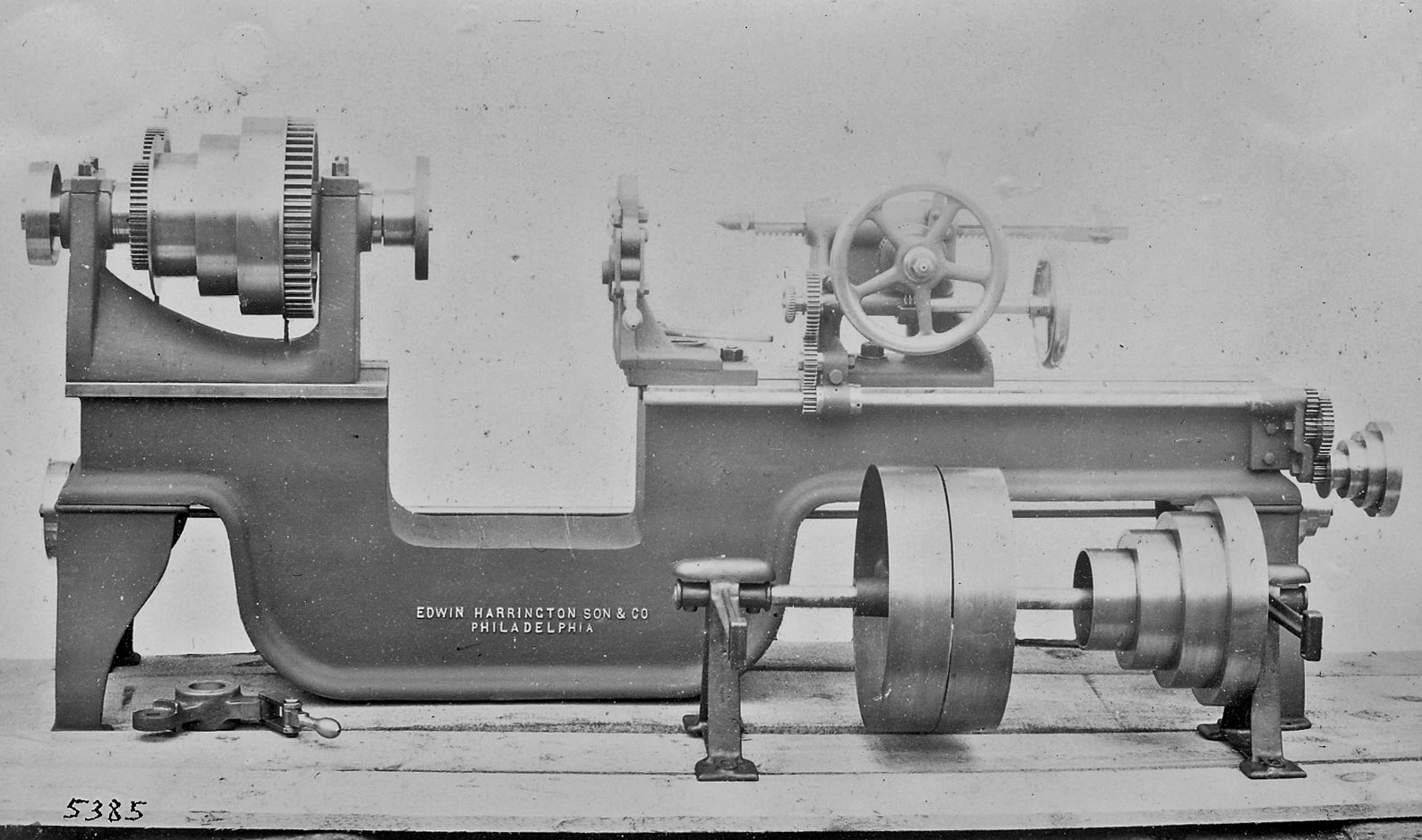

CHUCKING O[R] BORING LATHE.
READ ALSO PAGE: 49.

(Gap Pattern.)

Swings 24 inches over shears ; 48 inches diameter, by 13 inches wide through gap; cone has three sections for 3-1/8-inch face; back geared; front journal, 3¼ x 5 inches; 1½-inch hole through live spindle. Shank of cutter bar is fitted to sliding spindle with Morse taper, the other end is supported in an adjustable bushing in live spindle; thus supported, the cutter bar will bore a straight hole; improved rest as shown on cut, with hardened steel jaws for flat drills of any width and thickness. The sliding spindle, 30 x 2¼ inches, is provided with a quick return, also with adjustable stop motion when automatic feed is used. Countershaft, hangers and pulleys, 20x4 inches, to run 70 turns per minute.
\
With 8-feet bed, 4½ feet between centres, weight lbs. Price, $
Per extra foot of bed. Price, $
24-inch chuck, fitted to spindle. Price, $
Boxing for foreign shipment, $
