Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
|
 |

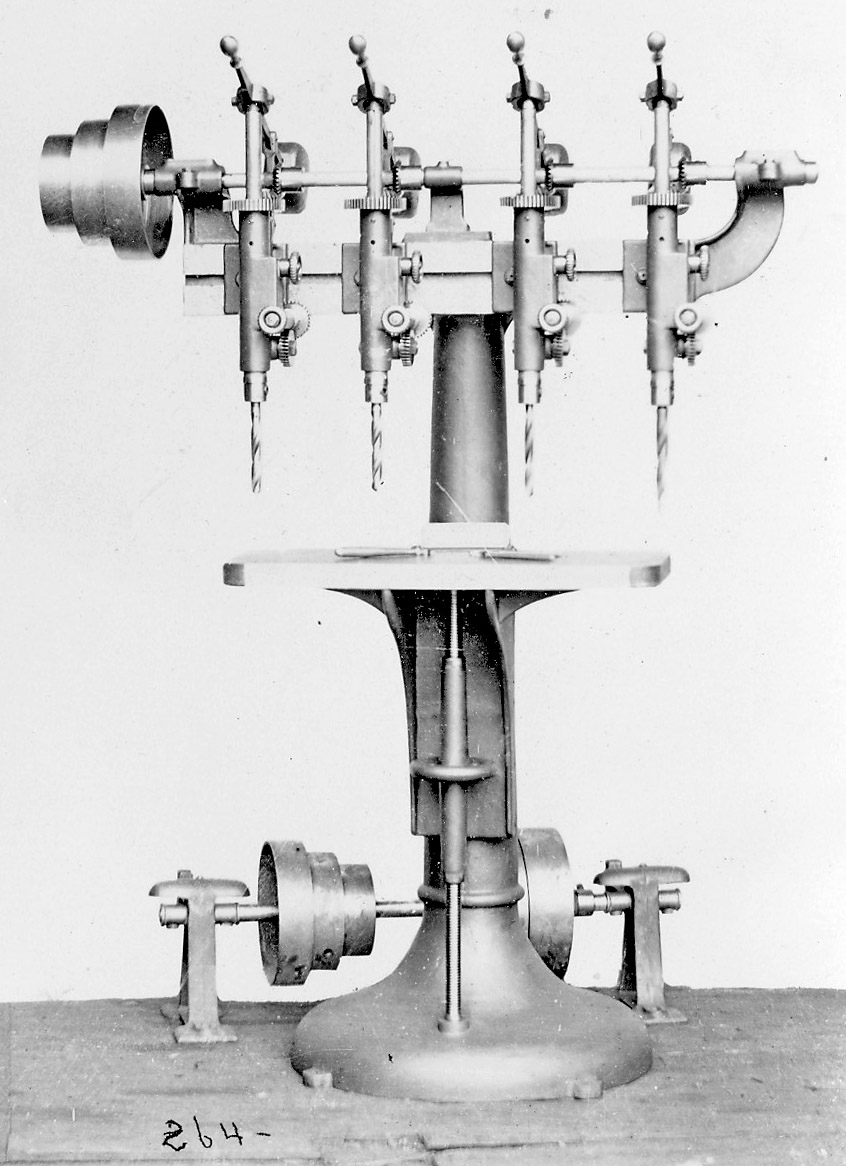

NO. 1 MULTIPLE DRILL.
Will drill four 5/16 holes at once. Spindles have hand and power feed;
balanced, quick return by lever; lateral adjustment, one or more may be
run at same time, any desired speed by arrangement of gearing; table
has vertical adjustment by right and left screw; spindle to column,
7½ inches; shortest distance between spindles, 4½ inches.
Countershaft and pulleys, 12x3½ inches, to run 350 turns per
minute.4 Spindles. Shipping weight, lbs. 4 spindles, $375.00 Per extra spindle, $45. Boxing for foreign shipment, $ |
