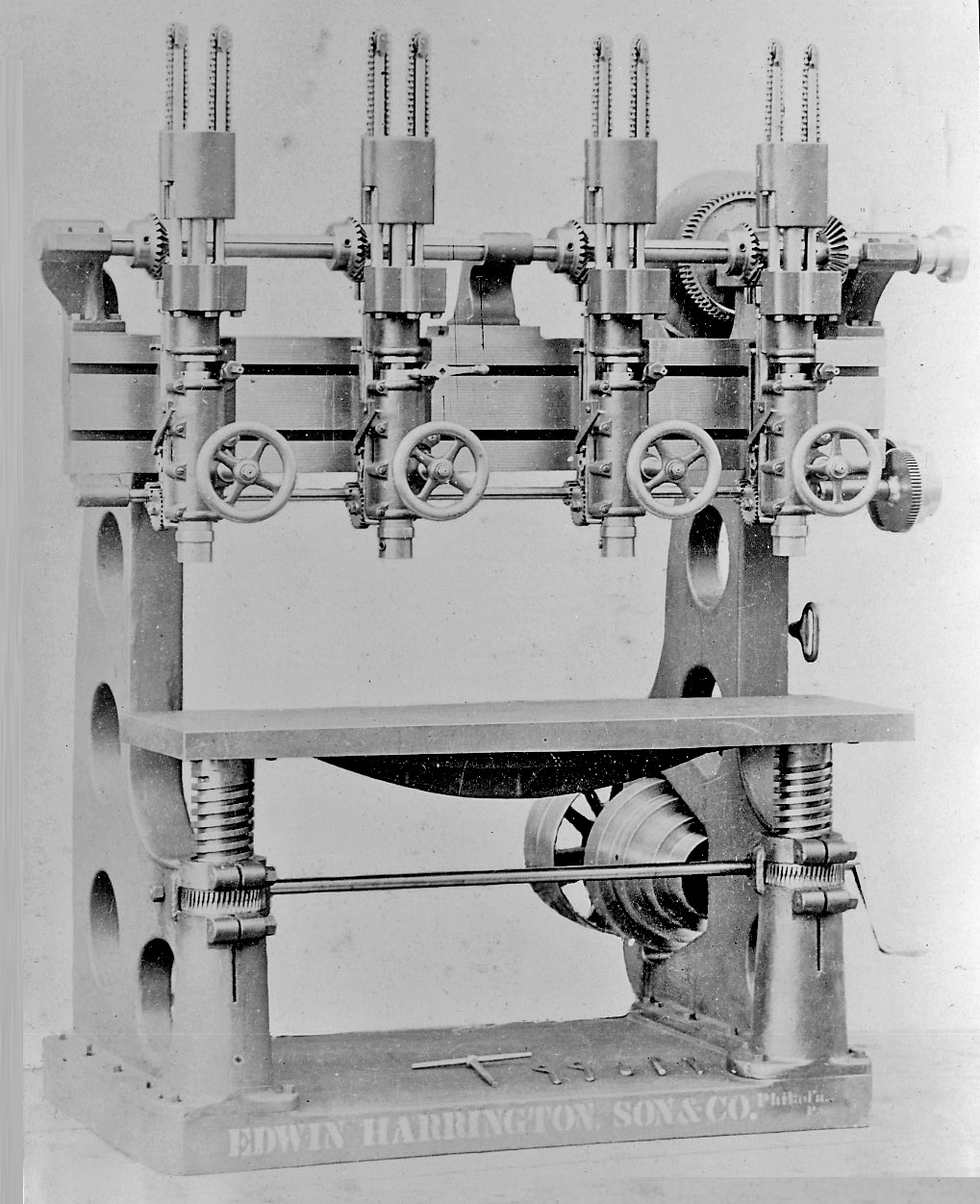

NO. 4 MULTIPLE.

Will drill four 1-inch holes at once without use of back gears; each spindle head has independent lateral adjustment on cross head; one or more may be used at same time. Each spindle is counter-balanced, quick return; feed of spindle stopped automatically. Table, 61½x18; raised and lowered by worm gear and shaft; shortest distance between spindles, 6¼ inches; cross head 60 inches long; longest distance between end drills, 51 inches; centre of spindle to column, 12 inches; traverse of spindles, 7 inches; longest distance spindle to table, 21 inches; shortest, 4½ inches; floor space, 6 feet 8 inches by 5 feet 3 inches; height over all, 7 feet 8 inches. Counter-shaft, hangers, pulleys, 16x4½, to run 225 turns per minute.

Shipping weight, lbs. $
4 spindles, $1,500.
Per extra spindle $
Boxing for foreign shipment, $

NO. 2 MULTIPLE DRILL.
Same design as No. 4, page 94.

Will drill four 1-inch boles at once, without back gearing; each spindle head has independent lateral adjustment on cross head; one or more may be used at same time; spindles are counter-balanced, quick return; feed of spindle stopped automatically. Table, 61½x18; raised and lowered by worm gear and shaft; shortest distance between spindles, 4-3/8 inches; centre of spindle to column, 12 inches; traverse of spindle, 7¾ inches; longest distance, spindle to table, 21-7/8 inches; shortest distance, 2¾ inches; longest distance between end drills, 51 inches; floor space, 6 feet 8 inches by 5 feet 3 inches; height over all, 7 feet 8 inches. Counter-shaft, hangers, pulleys, 16x4½, to run 225 turns per minute.

Shipping weight, lbs. $
4 spindles, $
Per extra spindle, $
Boxing for foreign shipment, $
