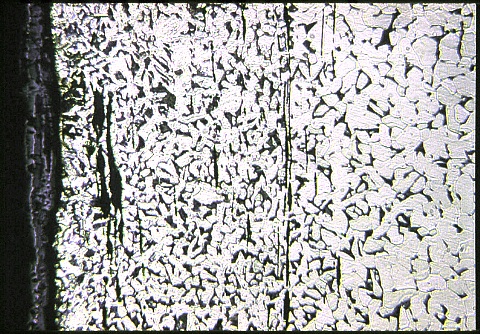

The first photomicrograph that I made of this specimen shows the edge at 100X.
Write out your answer; complete all or part of the set; and then apply for a Username & Password so you can activate the link at the bottom of this page.
|
There are a couple of plausible explanations of this
peculiar microstructure. Neither is complimentary to its
manufacturer. This may simply be an example of an anachronism (an
antique technology or specimen). The first photomicrograph that I made of this specimen shows the edge at 100X. |
|

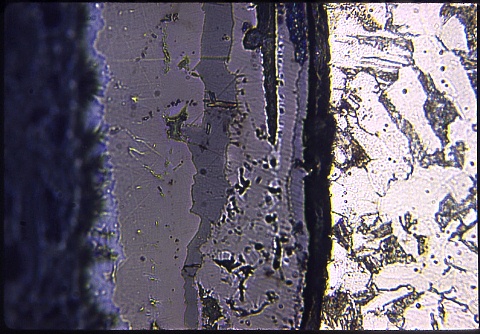

The second image also shows the edge, but at 500X. |
|

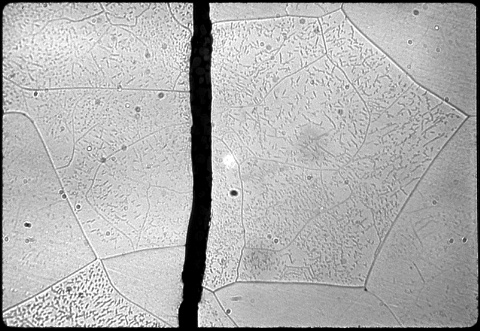

The third photomicrograph (a greyscale image) shows an area
deep in the interior at 500X. That's not a crack in the middle of
this image, by the way ... Write out your answer; complete all or part of the set; and then apply for a Username & Password so you can activate the link at the bottom of this page. |
| Answer: Follow this link. |
