Millers Falls No.1, 3 & 5 eggbeater drills
Type Study
Return to Main Page

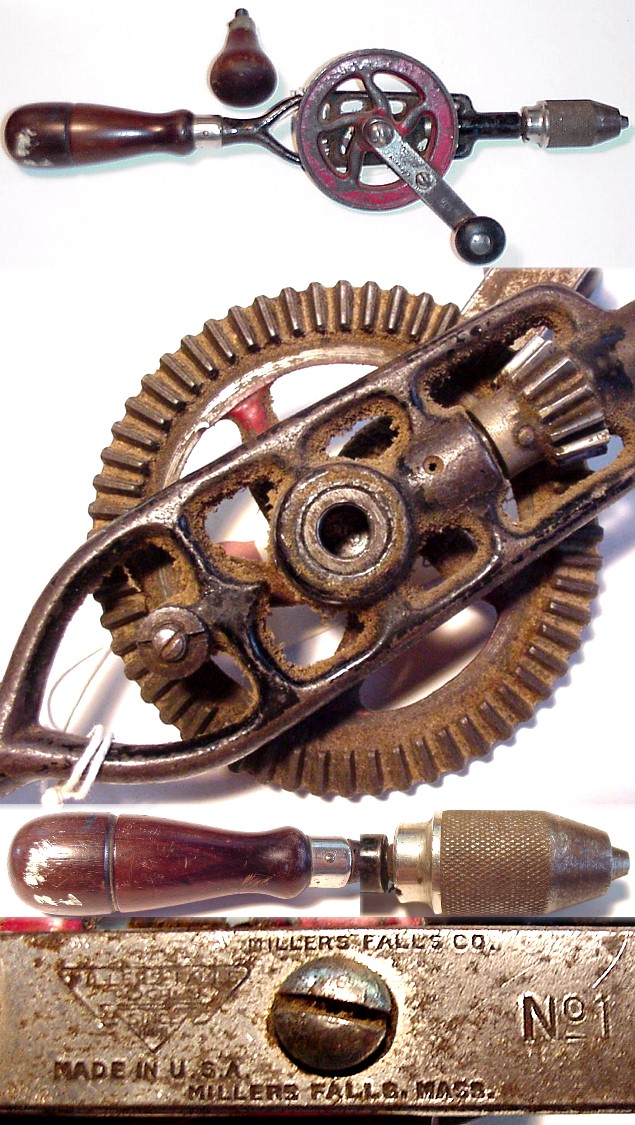

Millers Falls No.1 eggbeater drill;
Type 13 - Triangular Millers Falls logo and style number are now stamped straddling the affixing screw of the crank; and the steel center is back in the enlarged center boss in the frame for securely holding the newly reshaped side handle. The Star pattern, protected-spring, 3-jaw chuck is here again as well, but with a longer body.  Notice that the spindle oil hole has been moved closer to the frame hub.
