Millers Falls No.1, 3 & 5 eggbeater drills
Type Study
Return to Main Page

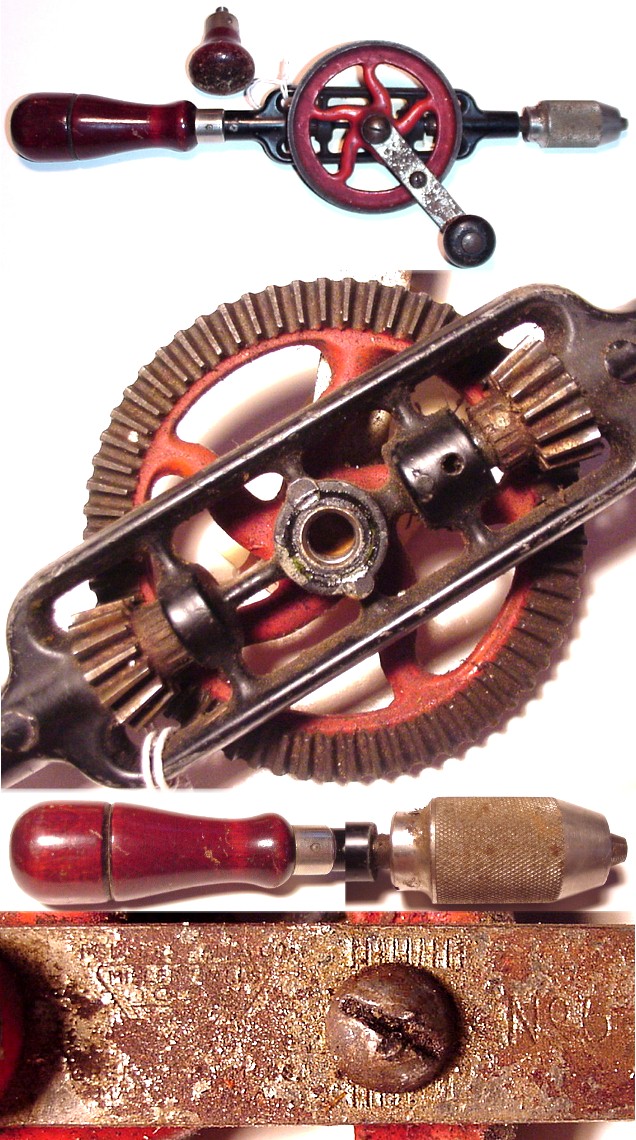

Millers Falls No.5 eggbeater drill;
Type 16 - The triangular Millers Falls logo and model number are stamped on either side of the crank affixing screw, along with some lines, that perhaps were used to as a substitute for a lock washer, near the crank knob.  The protected-spring, 3-jaw chuck is no longer stamped with the patent date; and the thickly red lacquered hardwood main handle has a gently rounded flare.
The major change is in the frame, which is now made of die-cast alloy.  The pinions have a more usual pressure angle.
